Leeboy Rosco NV55
Leeboy Rosco NV55
or
Call 1-877-GO-Cubex
Description

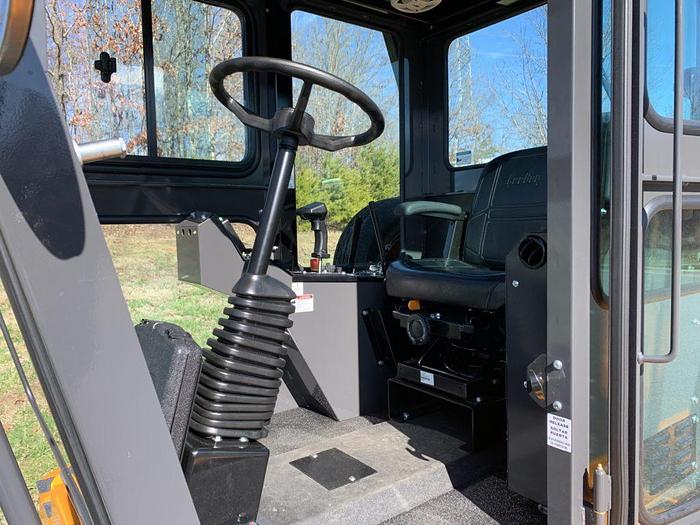

The broom for professionals, the NV55 offers many advantages linked to simple operation and superior sweeping action. The multi-functional joystick control lever combined with fingertip controls provide precision movement during operation. The standard configuration features wrap-around windows that give the operator remarkable visibility while residing in the comfortable fully-enclosed cab. Requiring only one person, the quick-change core system permits the replacement of a brush in minutes limiting downtime.
Brush Location
- Front-Mount Brush Location
Dimensions
- Length: 15’ 6”
- Width: 7’ 9” no tilted
- Height: 9’ 1”
- Wheelbase: 7’ 3”
- Turning radius, inside: 4’ 2”
- Turning radius, outside: 13’ 4”
- Total weight: 5,700 lbs w/o water
- 6,900 lbs w/ water
Brush
- Joystick control
- Variable down pressure and speed control
- Speed: 160 rpm max, variable by dial or engine speed
- Drive mechanism consists of direct hydraulic motor enclosed in broom core
- Quick change brush system
- Filter: tube type, poly, 32” diameter, 7’ 6” long
- Sweep angle: 30⁰, left or right standard (50⁰ w/side shift option)
- Speed: 160 rpm max, variable by engine speed
Engine
- Tier 4 Final 74 HP (55 kW) Max @ 2,500 RPM Hatz diesel 4H50TIC
- Air cleaner: Rotary pre-cleaner
- Electrical system: 12 volt system, alternator and battery
- Fuel reservoir: 30 gallons
Specifications
Manufacturer | Leeboy Rosco |
Model | NV55 |
* Length | 15’ 6” |
* Width | 7’ 9” no tilted |
* Height | 9’ 1” |
* Wheelbase | 7’ 3” |
* Turning radius, inside | 4’ 2” |
* Turning radius, outside | 13’ 4” |
* Total weight | 5,700 lbs w/o water |
* Air cleaner | Rotary pre-cleaner |
* Fuel reservoir | 30 gallons |
