Leeboy Rosco RB50
Leeboy Rosco RB50
or
Call 1-877-GO-Cubex
Description

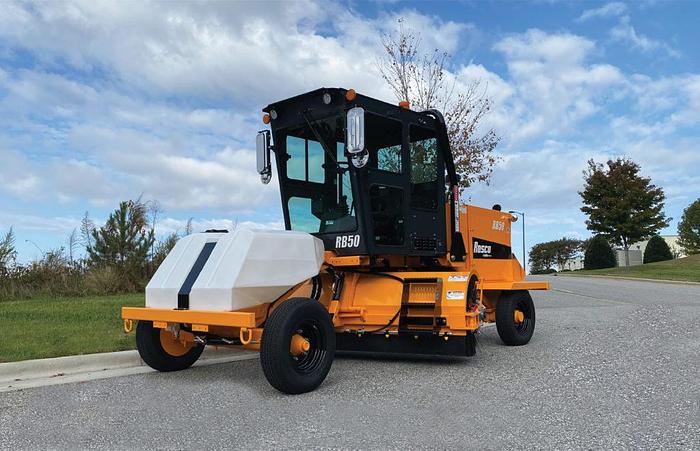

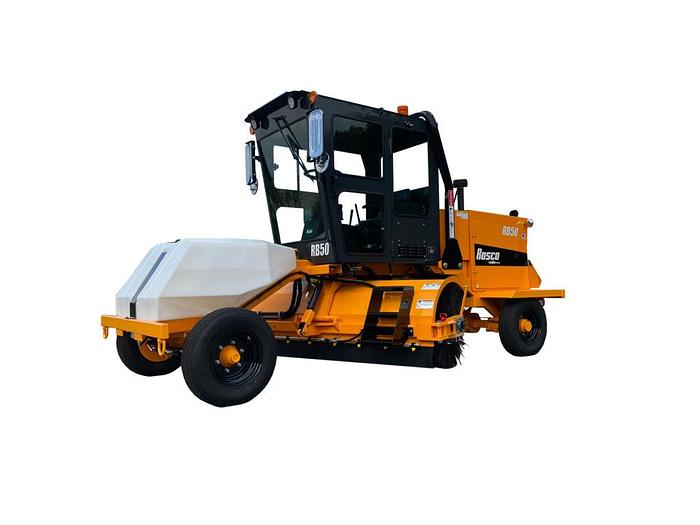

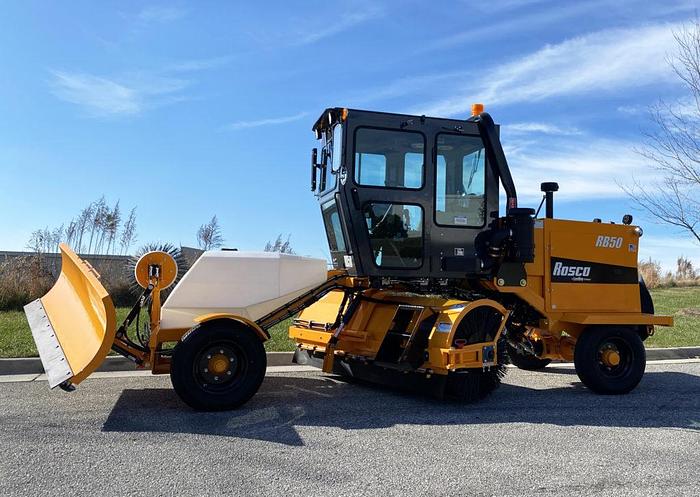

The RB50 provides best-in-class, aggressive sweeping in a rugged design. This self-propelled broom features well-thought-out control placement and heightened visibility that makes this machine extremely easy to operate for drivers of all experience levels. Perfect for general application sweeping to highway use, the RB50 incorporates the notable quick-change brush system which allows one person the ability to switch the brush core within minutes.
Drive mechanism consists of direct hydraulic motor enclosed in broom core
Quick change brush system
Specifications
| Manufacturer | Leeboy Rosco |
| Model | RB50 |
| Length | 15’ 6” |
| Width | 7’ 9” no tilted |
| Wheelbase | 11’ 8” |
| Total weight | 5,510 lbs w/o water, 6,710 lbs w/ water |
| Sweep angle | 45⁰, left or right |
| Air cleaner | Rotary pre-cleaner |
| Fuel reservoir | 30 gallons |
| Electrical system | 12 volt system, alternator and battery |
| Speed | 200 rpm max, variable by engine speed |
| Filter | tube type, poly, 32” diameter, 7’ 6” long |
| Turning radius | 10’ inside, 18’ 9” outside |
| Height | 8’ 5” w/ROPS, shipping, 9’ 5” w/ROPS and beacon, operating |
| Brush Location | Center-Mount Brush Location |
| Engine | Tier 4 Final 74 hp (55 kw) max @ 2,500 rpm Hatz diesel 4H50TIC* |
| Brush | Joystick control, Variable down pressure and speed control |
