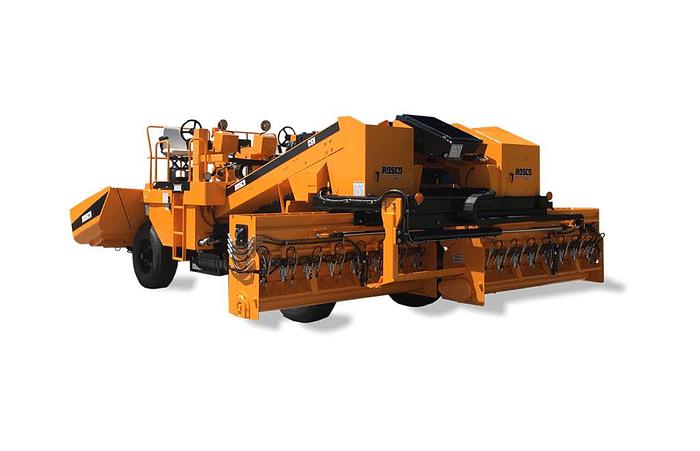

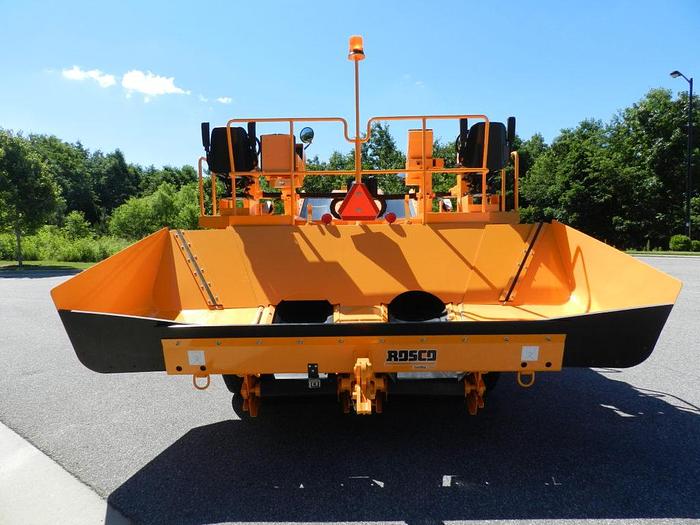

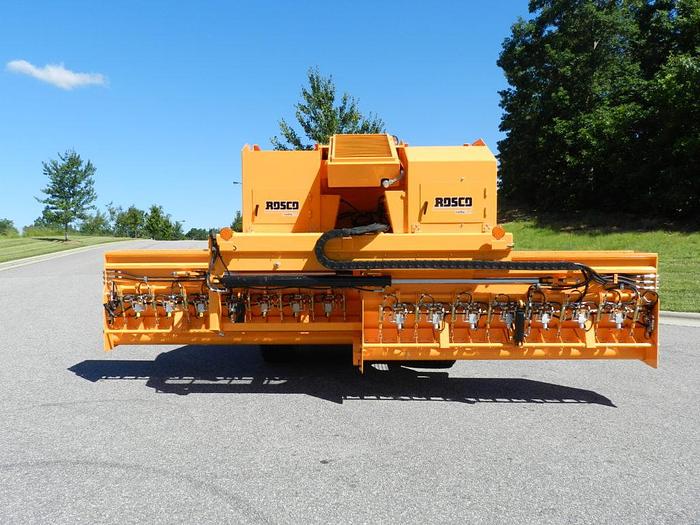

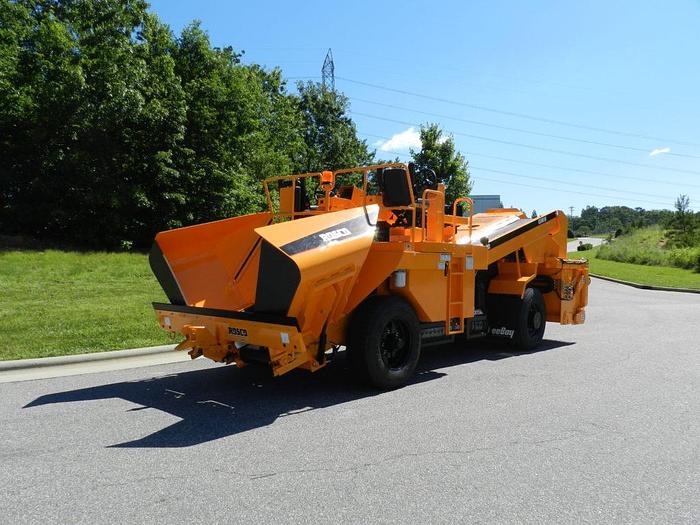

CSV Spreader
CSV Spreader
or
Call 1-877-GO-Cubex
Description

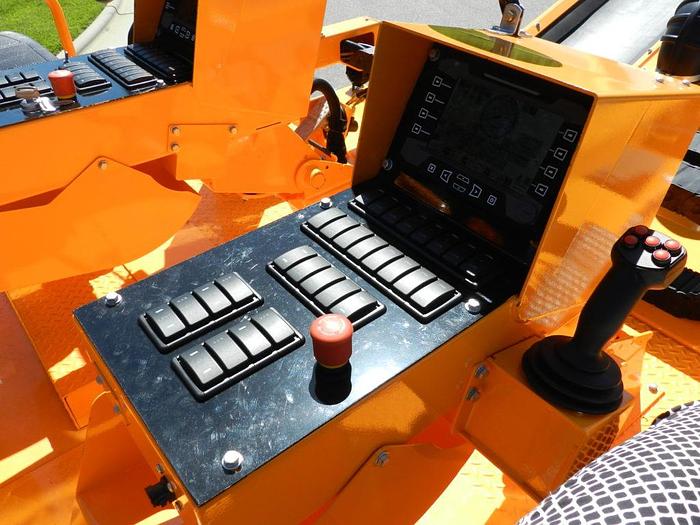

Serving as the most advanced chip spreader in our product line, the Rosco CSV continues our company’s commitment to the preservation industry. The variable width spread hopper and smaller overall footprint provide flexibility that enables chipping within confined areas such as urban routes. Special consideration has been given to the operator’s comfort, safety and visibility making this equipment extremely enjoyable to operate. Given the raw power of this unit, the quality of the finished product remains the same even in areas with rough, steep terrain.
Engine
- Tier 4 Final, 275 hp (205 kw) Cummins diesel turbocharged engine
- Proportional hydraulic fan drive: maximize hp, reduce noise and automatic cleanout
- Fuel filter, fuel water separator filter
- 12 volt negative ground system
- Dual 1000 amp, 12 volt batteries
- Dry type dual air cleaner system with indicator
- Electrical variable controlled engine throttle
Specifications
Manufacturer | Leeboy Rosco |
Aggregate Delivery | Variable Width |
Weight | 23,720 lbs (10,759 kg) |
Overall Length | 25’ 10” |
Overall Width | 8’ 6” |
Overall Height | 8’ 8” beacon retracted |
Wheelbase | 12’ 10.5” |
Turning radius | 26’ outside turn radius 22’ 3” inside turn radius |
Fuel reservoir | 65 gallons |
