Description

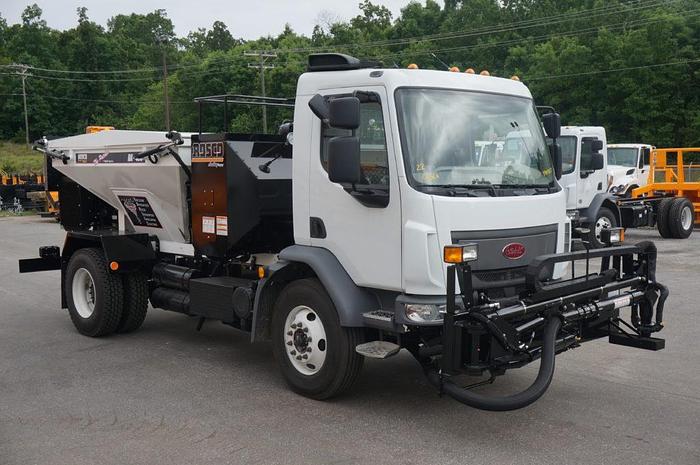

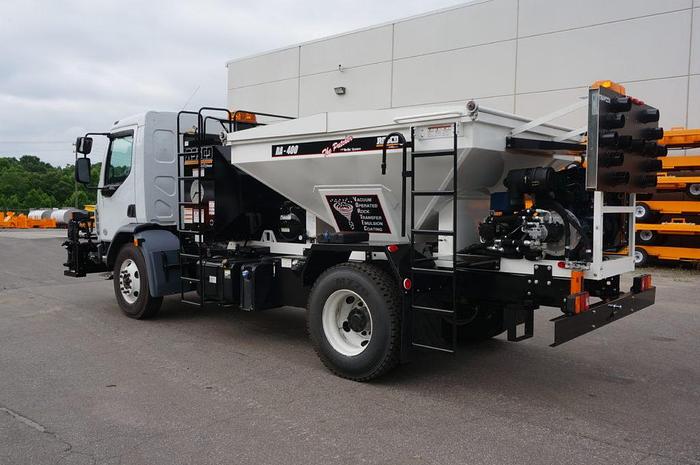

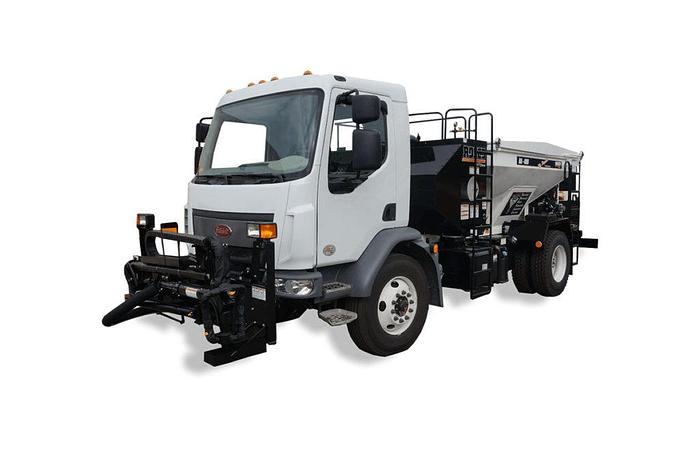

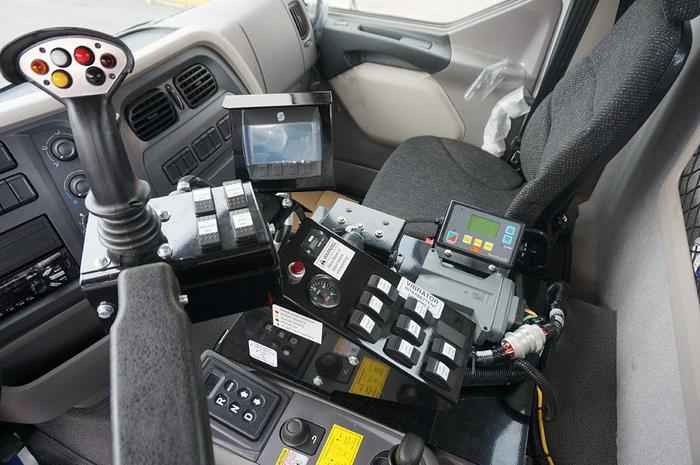

The ultimate output of the RA-400, which is capable of correcting over 200 road defects in a single day by a single individual, has been deployed by contractors looking to maximize productivity while finding a cost-effective patching solution. The driver-operated joystick performs a four-step spray injection process typically in less than one minute per repair. Including one of the largest emulsion tanks available in the market, the RA-400 patching boom extends and retracts providing a wide patching range with minimal required maintenance. Aggregate System: Low profile, 5 cubic yard hopper, or 11,000 lbs, Rectangular welded 10’ 3” x 7’ aggregate hopper, In-cab controlled vibration system, Dual electric over hydraulic activated hopper lids, rear access open/close switch, Cab controlled adjustable, feed slide gate meters aggregate flow, System will accept aggregates up to .75” (19 mm), Plus+1 system store settings: rock flow, emulsion flow and air flow, VORTEC: Vacuum Operated Rock Transfer Emulsion Coating system, – System utilizes no mechanical or moving parts to move aggregate, – Ease of access to clean and service the slide gate and sub systems, – Conveyors and/or paddle feeders are NOT acceptable, – Venturi nozzle with cleanout. Dimensions: Length: 28’ with boom retracted, 38’ 5” with boom fully extended, Width: 8’ 6”, Height: 10’, Weight: 18,000 lbs with standard chassis. Operator's Controls: One person operation from driver’s seat, All patching functions are in the cab, including cleaning, tack coating, patching and dust coating, LCD display controlled from Plus+1 CAN Bus system in cab monitors boom location, blower speed, rock and emulsion flow, hydraulic temperature, emulsion level and system faults, Single joystick controls: Boom swing, extend/retract and push button for up/down, Push buttons operate: Blow out mode, emulsion on/off, aggregate gate on/off and extension/retraction, Control center includes: Auxiliary engine on/off, blower on/off, blower inc/dec, rock flow inc/dec and emulsion inc/dec, Engine alarm, tachometer, pre-heat, engine start/on/off, rpm min/max, Boom auto stow and override, Vibrator on/off, beacon light switch, hour meter, circuit breakers
Specifications
Manufacturer | Leeboy Rosco |
